Design Overview

This document provides an overview of Tunix (Tune-in-JAX), a JAX-native framework for post-training large language models. It covers the overall layered architecture and the training loop architectures for Supervised Fine-Tuning (SFT), Reinforcement Learning (RL), and Agentic RL. Understanding this design should help you better utilize and extend Tunix for model tuning.

High Level Architecture

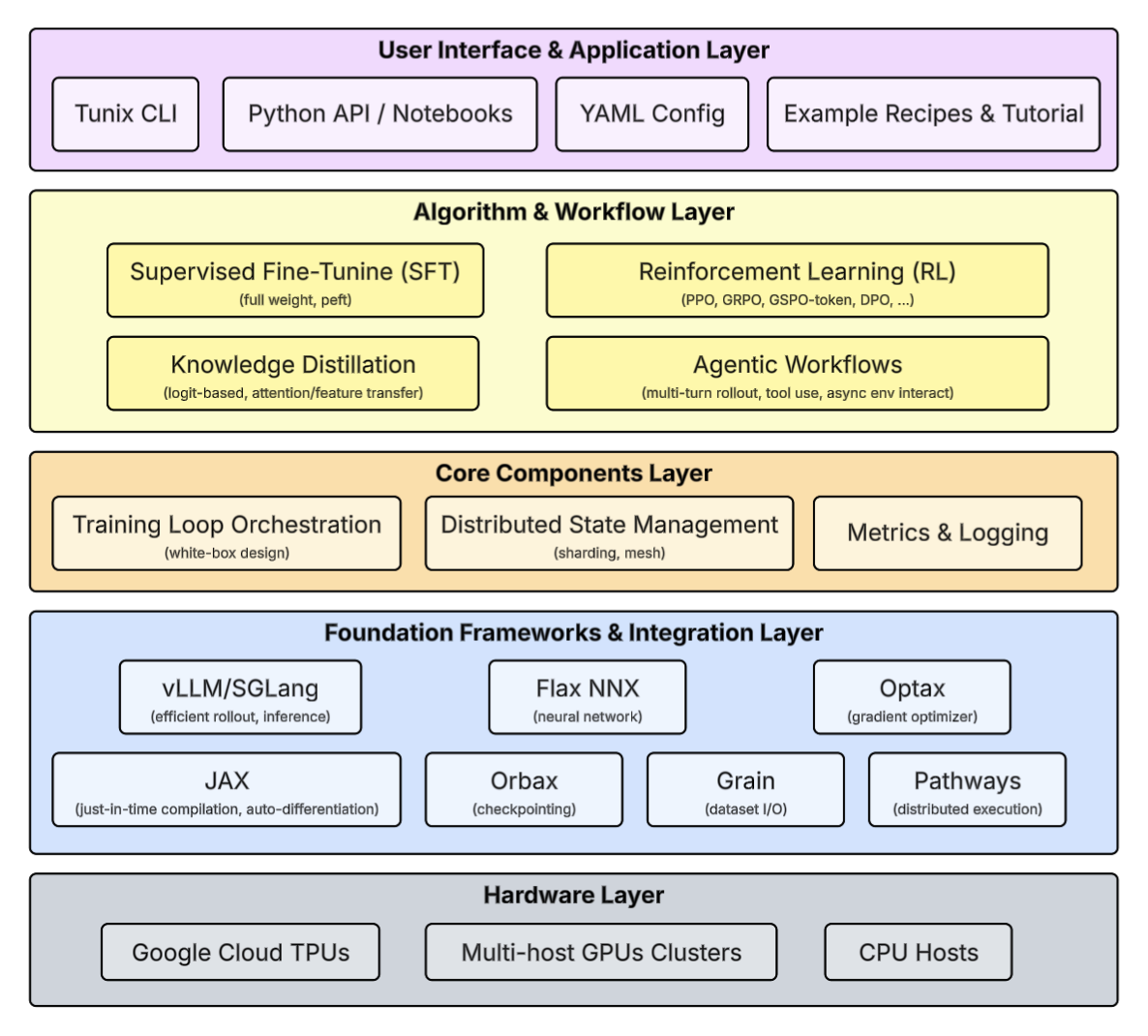

The diagram below illustrates the layered architecture of Tunix:

• User Interface & Application Layer: This top layer provides the primary access points for users through CLI tools, interactive notebooks, and configuration files to define and manage tuning experiments. See Launching Jobs for more details.

• Algorithm & Workflow Layer: This layer houses the core training paradigms, including supervised fine-tuning, reinforcement learning, and agentic workflows, to support diverse model optimization strategies. See Algorithms Supported for more details.

• Core Components Layer: Responsible for the inner workings of the system, this layer handles training loop orchestration, metrics tracking, and the complex distributed state management required for large-scale runs.

• Foundation Frameworks & Integration Layer: This layer integrates powerful underlying libraries like JAX, Flax, and Optax to provide high-performance computation, neural network primitives, and efficient gradient optimization.

• Hardware Layer: The base of the stack manages the physical or virtual compute resources, specifically optimized for Google Cloud TPUs, multi-host GPU clusters, and CPU hosts.

SFT

Supervised Fine-Tuning (SFT) is a fundamental technique in machine learning used to adapt pre-trained models to specific downstream tasks by training them on a labeled dataset. In Tunix, the SFT pipeline is designed to efficiently fine-tune large language models (LLMs) using various datasets and optimization strategies, leveraging the underlying JAX ecosystem.

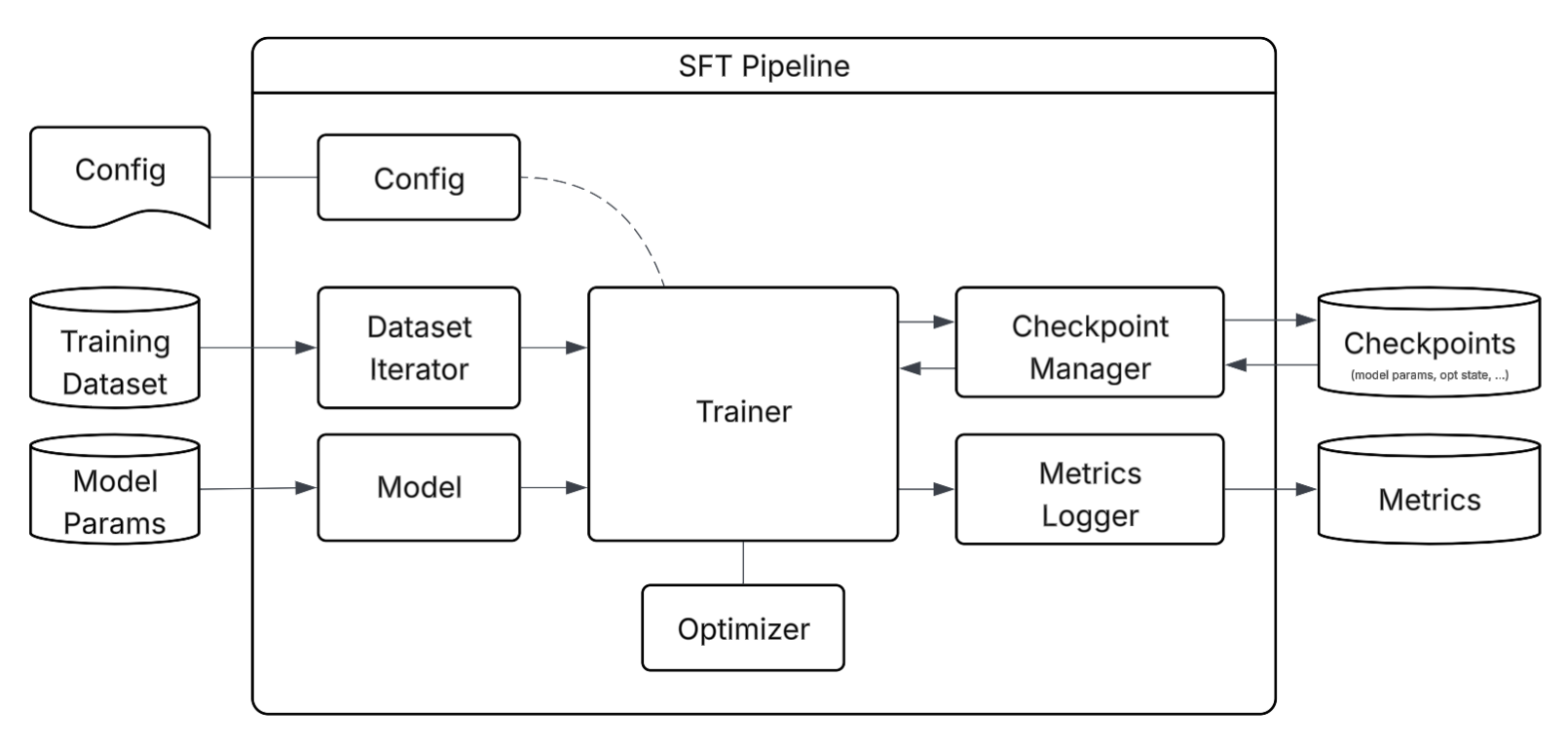

The following diagram illustrates the Supervised Fine-Tuning (SFT) pipeline in Tunix, showing the flow of data and control.

• Config: Manages configurations for all pipeline components, such as dataset details (e.g., URL), model specifics (e.g., URL, tokenizer), trainer settings (e.g., max steps, hyperparameters), and checkpointing (e.g., save frequency). See Config Explanation for more details.

• Dataset Iterator: Manages the stream of data from the external Training Dataset, ensuring the model receives processed batches during the training process. Tunix supports various data sources like TFDS and Parquet, and also allows for the integration of custom datasets.

• Model: Manages the initialized LLMs (e.g., nnx.Graph) loaded with weights from external Model Params, serving as the core entity being trained. Tunix supports a set of predefined models (e.g. gemma, llama, qwen) and also allows for the integration of new custom models. See Models for more details.

• Trainer: Orchestrates the training steps by coordinating interactions between the model, data, and optimizer.

• Optimizer: Applies optimization algorithms (e.g., AdamW) to update model parameters based on the calculated loss.

• Checkpoint Manager: Handles periodic saving of model states to external storage for training recovery or model deployment. Tunix leverages the Orbax library for robust and efficient checkpoint management.

• Metrics Logger: Captures performance data during training and exports it to external databases for monitoring and analysis. See Metrics for more details.

RL

Reinforcement Learning (RL) is a paradigm where an agent learns to make decisions by interacting with an environment to maximize a cumulative reward. Tunix provides a framework for Reinforcement Learning, designed to support various RL algorithms and optimization strategies, leveraging the underlying JAX ecosystem.

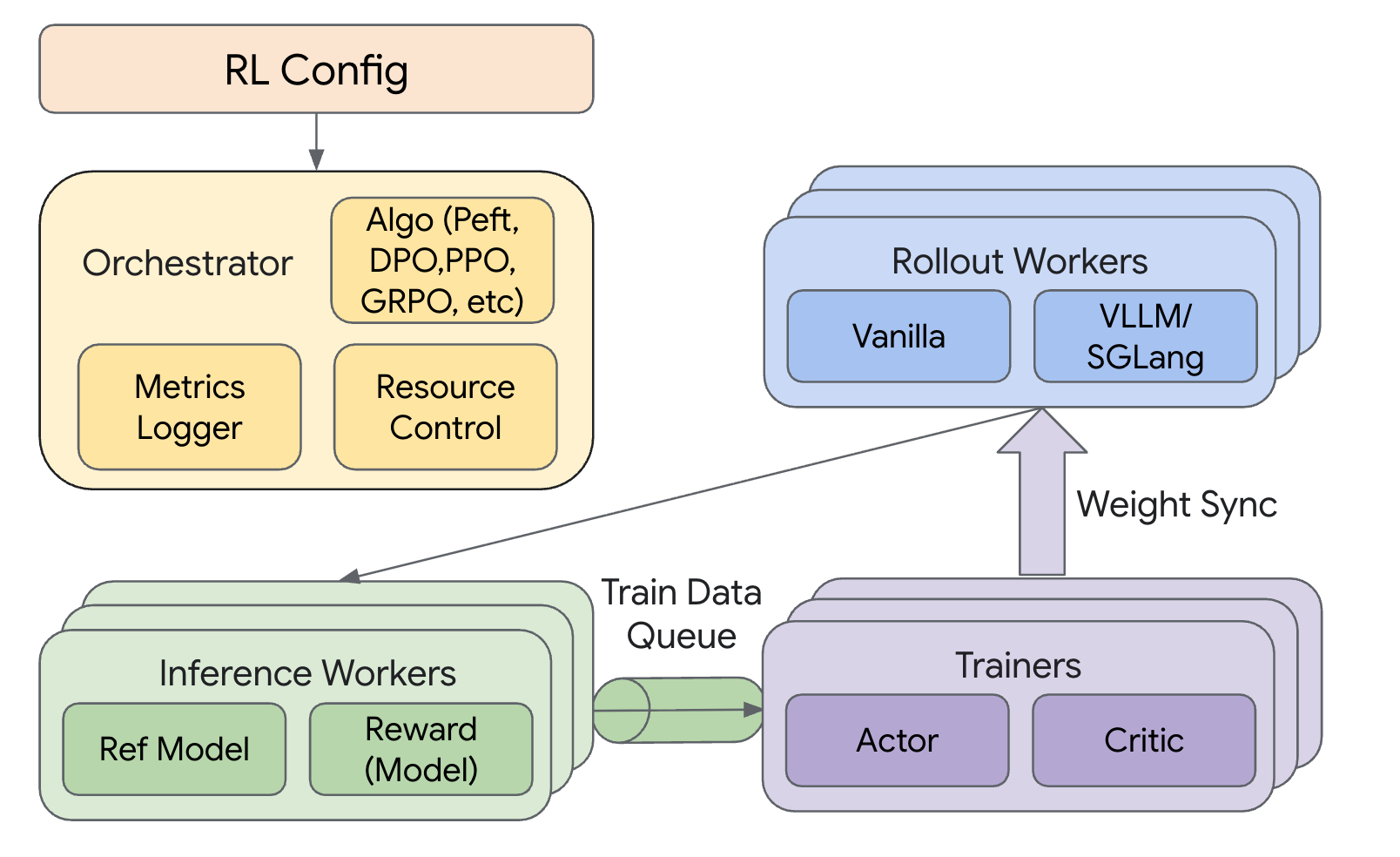

The following diagram illustrates a typical Reinforcement Learning (RL) pipeline in Tunix. The exact pipeline details can differ based on the specific RL algorithm being used.

• RL Config: Provides the central hyperparameters and algorithmic settings that initialize the entire pipeline and define the training objectives. See Config Explanation for more details.

• Orchestrator: Manages the global workflow, coordinating Resource Control, monitoring progress via the Metrics Logger, and directing the execution of the chosen RL algorithm (such as PPO or GRPO). See Algorithms Supported for more details.

• Rollout Workers: These workers generate sample trajectories from the current model using optimized runtimes like vLLM or SGLang. This ensures high-throughput data collection, crucial for efficient RL training. See Rollout for more details.

• Inference Workers: These workers host inference models (e.g., critic, reference, and reward models in PPO) to evaluate collected samples. They compute rewards, reference log probabilities, and value estimates.

• Train Data Queue: This in-memory buffer collects evaluated samples from the inference and rollout stages and streams them into the trainers.

• Trainers: Performs weight updates for the Actor and Critic models. A subsequent Weight Sync pushes these updated parameters back to the Rollout Workers, ensuring they use the latest model for the next iteration.

The Orchestrator drives the overall RL training loop. Within each iteration, Rollout Workers generate sample trajectories by interacting with the environment. These trajectories are then passed to the Inference Workers for evaluation, computing necessary values like rewards and log probabilities. The evaluated samples are collected and used by the Trainers to update the Actor and Critic models. Finally, a Weight Sync step propagates the updated model parameters back to the Rollout Workers, preparing for the next iteration. This entire process can be orchestrated in both synchronous and asynchronous manners (e.g. async data loading, async rollout).

Agentic RL

Agentic Reinforcement Learning in Tunix provides a framework for training agents that can perform multi-turn reasoning and interact with external tools. The design follows a standard RL paradigm where an Agent interacts with an Environment over multiple steps to complete a task.

The core design supports agents that engage in multi-turn conversations, breaking down complex problems into sequential steps of reasoning, tool invocation, and response generation. Agents can leverage external tools (e.g., search, code execution, APIs) to gather information or perform actions; the environment manages tool execution and feeds results back to the agent for subsequent steps.

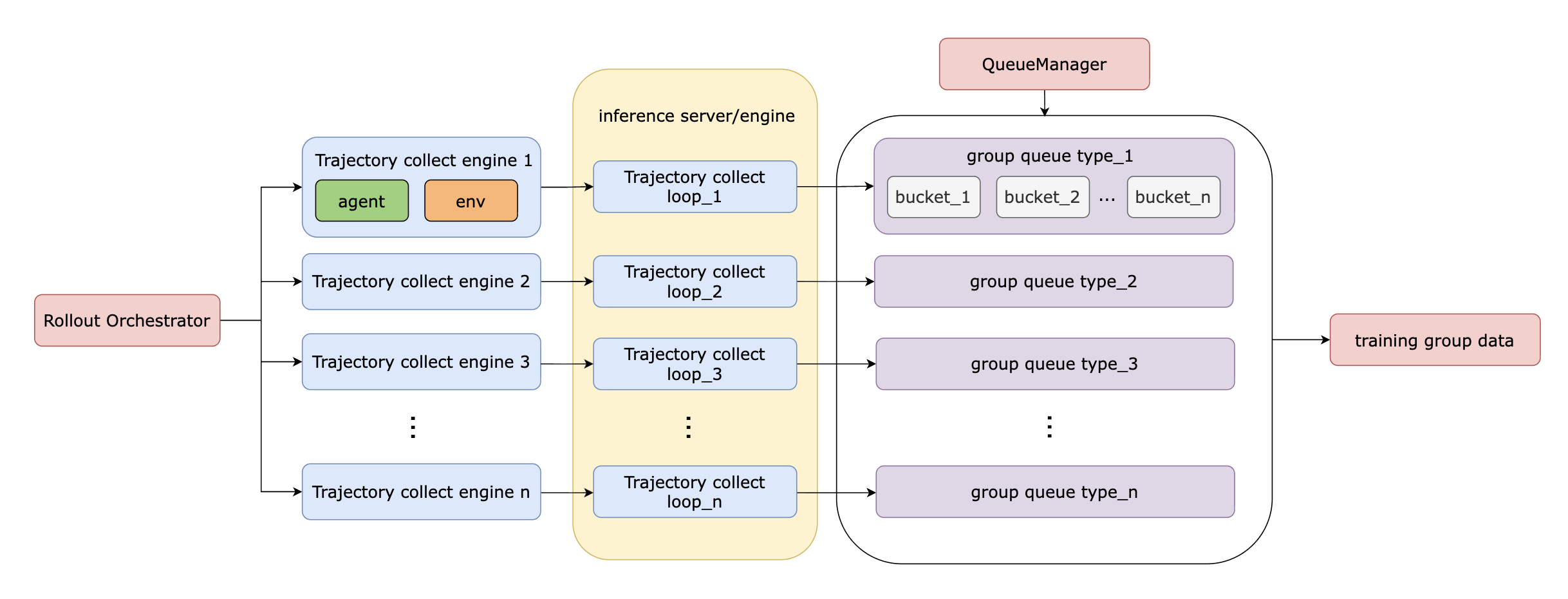

A key design focus is performance and scalability, achieved through a highly asynchronous architecture for both rollout and training. The trajectory collection pipeline is designed for high throughput, allowing many agent-environment interactions to run concurrently. This design efficiently overlaps model inference latency, I/O-bound tool execution, and reward computations, maximizing hardware utilization (e.g., TPUs) and enabling efficient online RL training.

The framework naturally supports trajectory batching and grouping, making it compatible with various RL algorithms, including those like GRPO that require multiple trajectory samples per prompt for robust learning.
